For wireless presentation and video conference integration in meeting and conference room solutions
E900P - Image 2
BYOM wireless presentation receiver
E900P - Image 4
E900P - Image 5
E900P - Image 6
E900P - Image 7

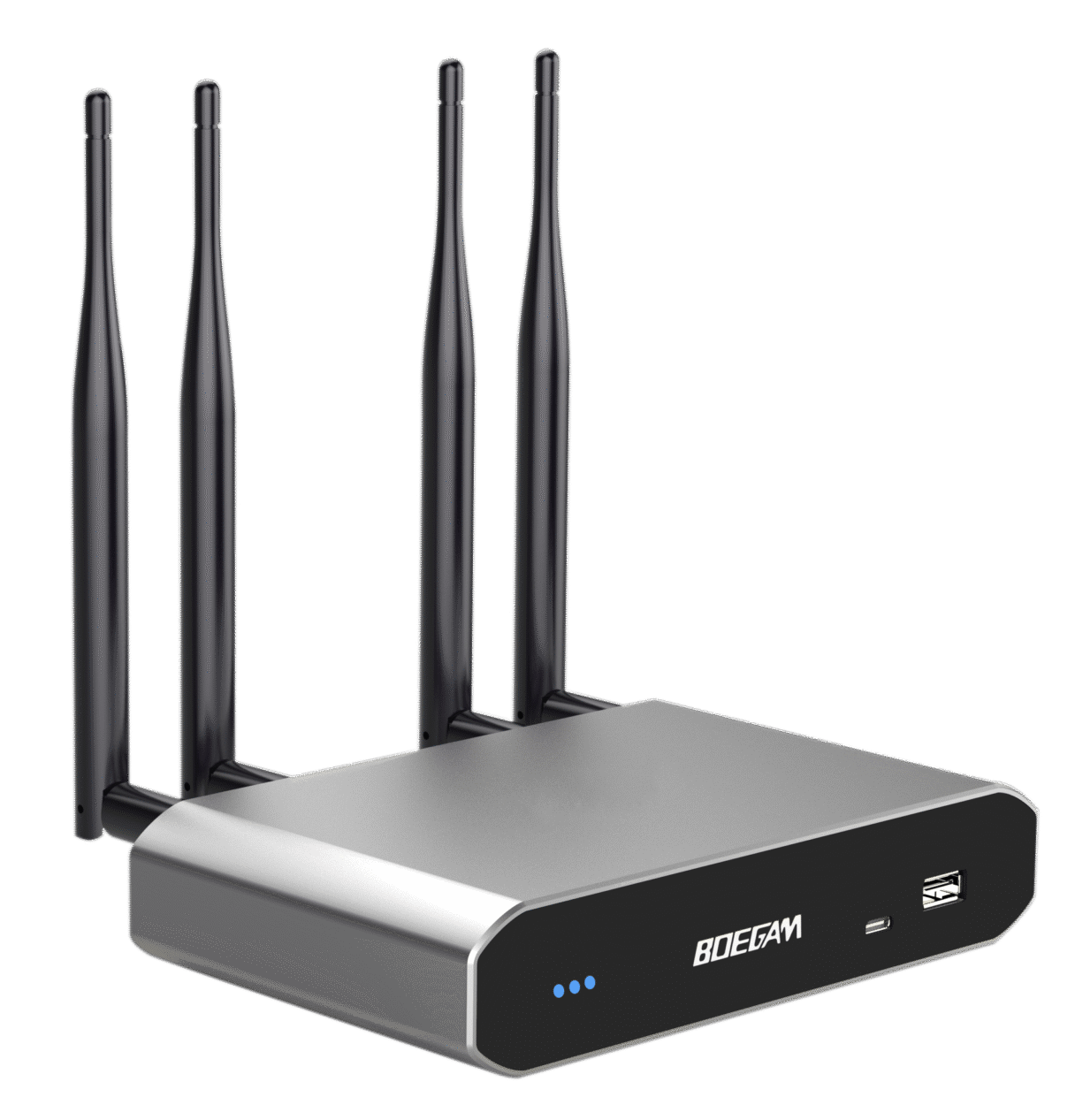

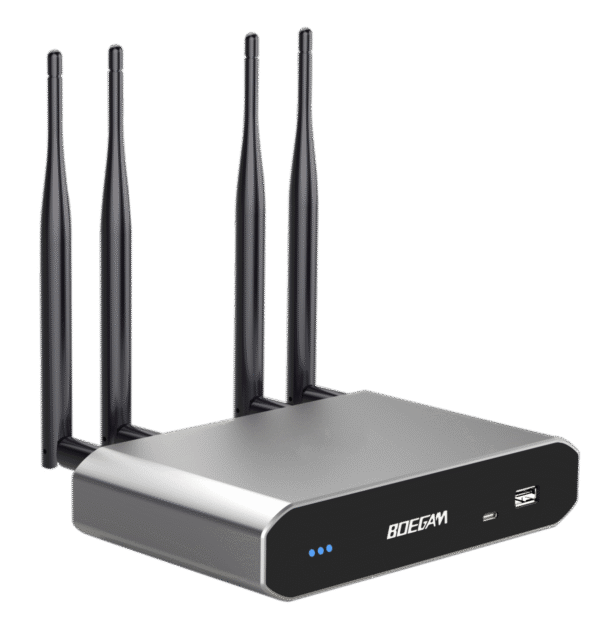

E900P

  • Pure wireless presentation experience, bring your own device, no cable messy
  • Wireless connection between your laptop and room USB peripherals like camera, mic, speakers for easy video conference
  • Wireless content input up to 1080P, HDMI 2.0 output
  • Support native wireless mirroring protocols like Airplay, Miracast,
  • Support plug&play HDMI/TYPE-C/USB-A dongles for wireless connection
  • Support windows APP for wireless connection
  • Support 9 split screen view
  • Support reverse control of laptop from touch screen
  • Best-in-class data security with high standard encryption
  • Central management platform available
  • One TX to many RX multi-display is availabl
Category:

Description

Embedded Hardware Architecture:

  • High-end multimedia chip RK3566 from Rockchip
  • A55 1.8GHz Quad-core CPU
  • Built-in dedicated hardware video codec processor (supports decoding of 1 channel 4K60 or 9 channels 1080P30 + 1 channel 1080P30 encoding simultaneously)
  • LINUX operating system, stable system, can run continuously without shutdown, supports 7×24 hours operation.

Supported Operating Systems:

  • Windows 7/10/11 (32-bit and 64-bit)
  • MAC OS X 10.10 and above
  • Supports wireless screen mirroring from smartphones/tablets: AirPlay (iOS 9 and above, OS X 10.10 and above), Android and HarmonyOS apps (Android 5.0 and above)
  • Supports Android and HarmonyOS phones via Miracast, and Windows 10/11 WiDi screen mirroring.

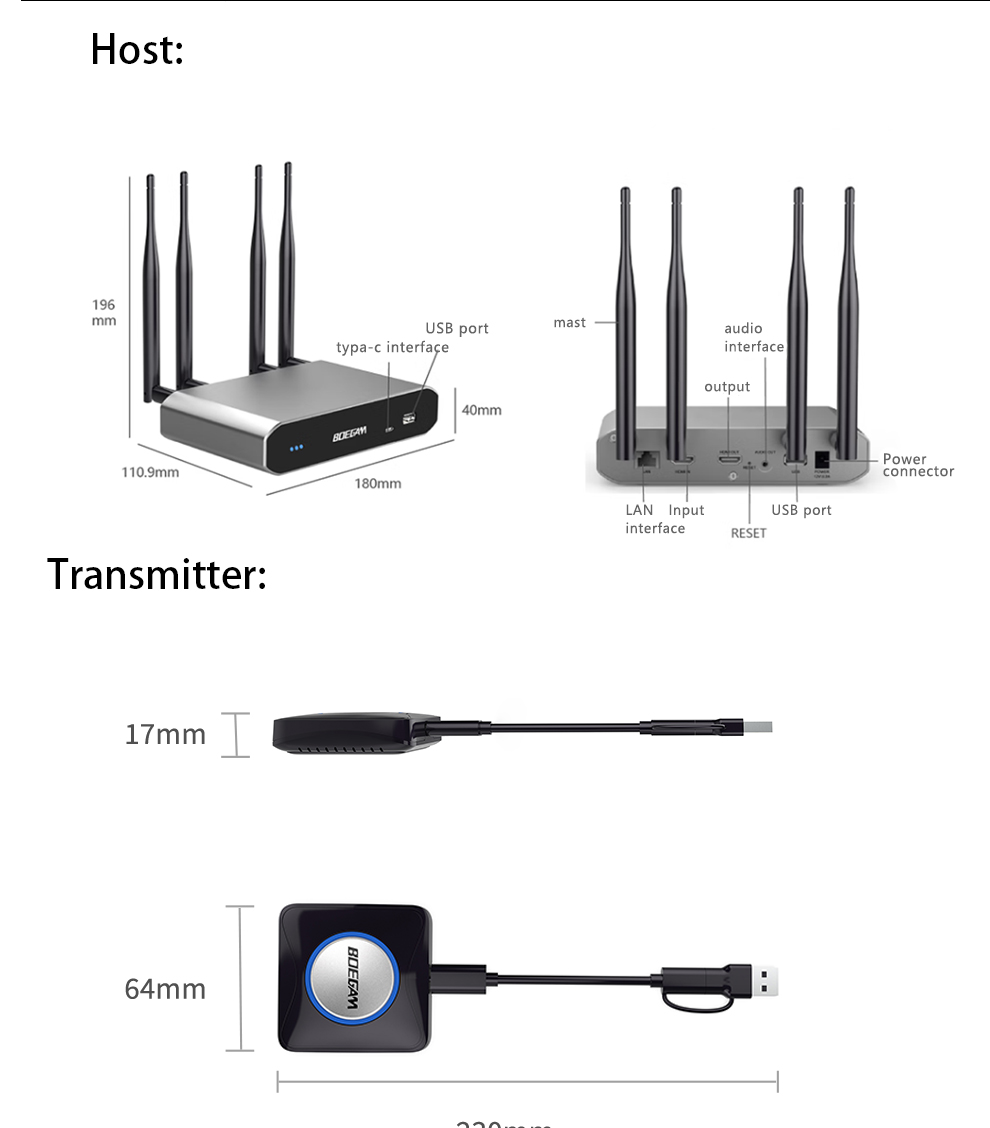

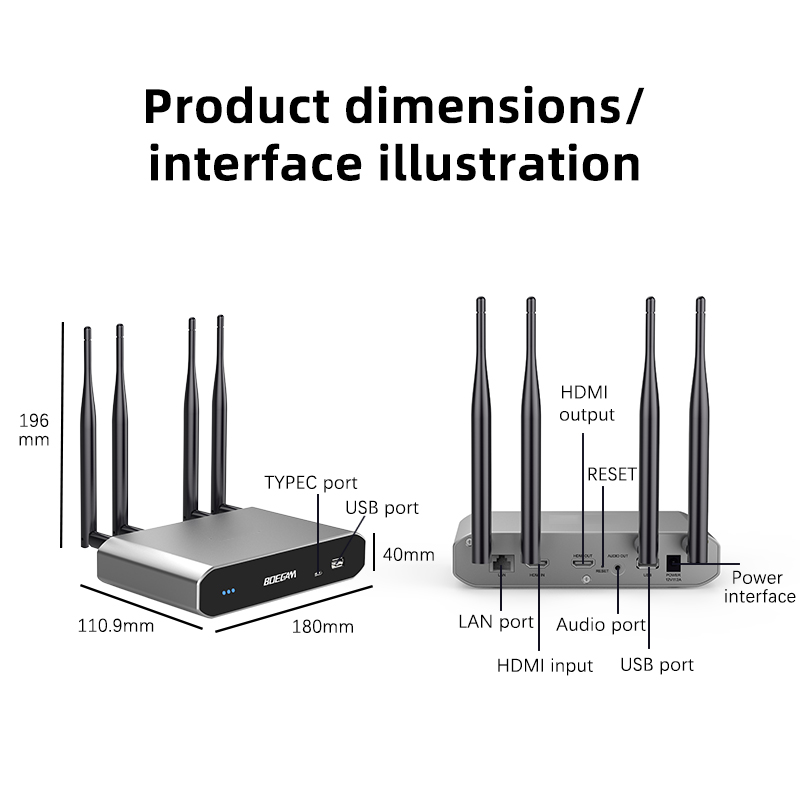

Hardware Specifications:

  • 1x HDMI2.0 output interface
  • 1x HDMI1.4 input interface
  • 1x Gigabit Ethernet interface
  • 1x 3.5mm audio output interface
  • 2x USB 2.0 interfaces
  • 1x TYPE-C 2.0 interface
  • 1x 12V/2A power interface
  • 1x RESET button for factory settings

HDMI Output Resolution:

  • Max 4096x2160P60

Supported Resolutions for Output:

  • 4096x2160P60, 4096x2160P30, 3840x2160P60, 3840x2160P50, 3840x2160P30, 2560x1600P60, 2560x1440P60, 1920x1200P60, 1920x1080P60, 1920x1080P50, 1600x1200P60, 1280x800P60, 1280x720P60, 1024x768P60.

HDMI Input Resolution:

  • Max 1920x1080P60

HDMI Input Features:

  • HDMI input can be configured to loop through to HDMI output for display or can be set to display with other transmitters in a multi-screen mode.

Codec Formats:

  • 265, H.264

Encoding/Decoding Capacity:

  • Max 4K60

Supported Transmitter Interfaces:

  • USB transmitter (1080P encoding)
  • HDMI transmitter (1080P/4K encoding)
  • TYPE-C transmitter (1080P/4K encoding)

Software-based Screen Mirroring:

  • Supports WIN pure software screen mirroring via WIN Sender application.

Display Content:

  • Supports mixed display from computer and mobile devices, with multiple mobile devices displayed simultaneously.
  • Various transmitters (hardware, AirPlay, software, etc.) can switch between each other without waiting.

Display Aspect Ratio:

  • Supports aspect ratios of 4:3, 16:9, 16:10

Wireless Features:

  • Supports auto search for multiple receivers on the same network segment for screen mirroring
  • Supports 1 to 9 sources on screen simultaneously (configurable in WEB)
  • Maximum source inputs: 64

4K Output for Single Screen:

  • True 4K output (4K input, encoding, decoding, and display)

Multi-screen 4K Output:

  • 2 to 4 screens: 1080P resolution per screen
  • 5 to 9 screens: 720P resolution per screen

Audio Output:

  • 1KHz/16bit Stereo via HDMI embedded audio and 3.5mm analog line-out.

Dual WiFi Support:

  • AP Hotspot: WiFi6 2T2R module, external dual antenna
  • Wireless network card: WiFi5 2T2R module, external dual antenna
  • Supports wireless and wired bridging

Wireless Transmission Protocol:

  • IEEE 802.11ax/802.11ac/802.11n

Wireless Transmission Speed:

  • Up to 1200Mbps

Wireless Transmission Range:

  • 50 meters (line-of-sight)

Wireless Frequency Bands:

  • Supports 2.4GHz or 5GHz, default 5G

Available Channels:

  • 9 channels (5G) / 11 channels (2.4G), 20 total channels

Wireless Encryption:

  • WPA2-PSK

Transmission Delay:

  • Average delay less than 150ms

Customization Features:

  • Supports custom boot/standby screens
  • WEB management interface supports modification of frequency band, channels, video output resolution, WiFi name, and password
  • Supports USB and WEB upgrades
  • Supports factory reset via WEB or RESET button

Additional Features:

  • Supports auto loop playback of videos and images from USB, with 4K support
  • BYOM (Bring Your Own Meeting) apps: USB interface supports camera, microphone, and speaker for wireless transmission to PC
  • HDMI input supports camera for MJPEG encoding and wireless return to PC
  • Supports Android controller mode for host control and WIN Controller software for centralized management
  • Wired multicast supports up to 250 screens displaying the same content
  • Wireless multi-screen: 1 transmitter + 8 receivers, no router required, self-networking
  • Supports mouse and touch feedback control for screen mirroring, multi-screen zoom, and restore functions

Power/Consumption:

  • Average power consumption: ≤6W (excluding USB camera power)

Temperature Range:

  • Operating: +5°C ~ +40°C; Storage: -20°C ~ +60°C
  • Operating and storage: 0 ~ 90% relative humidity, non-condensing
