Description

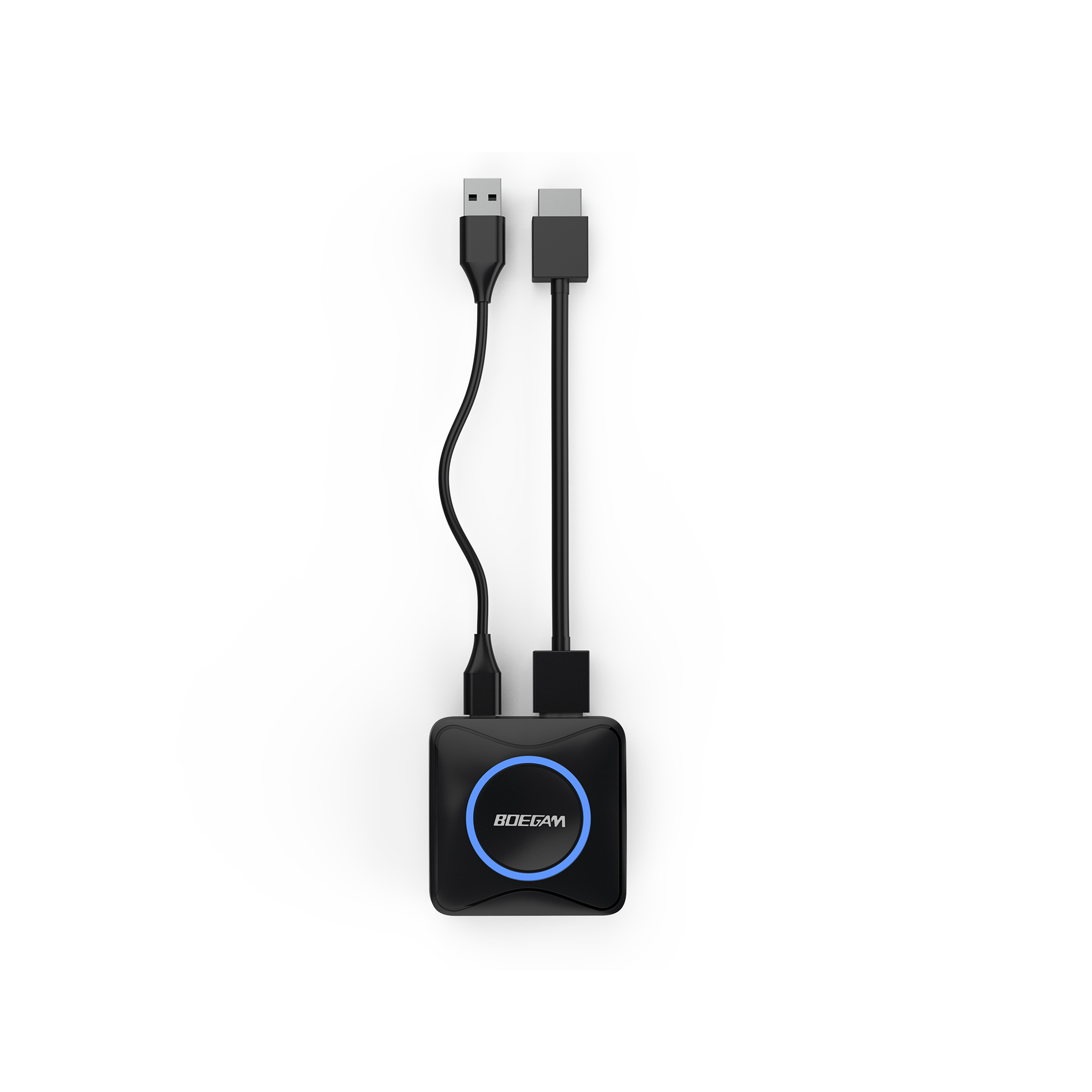

F11SU includes two functions: HDMI Wireless Transmitter and USB Camera Wireless Receiver.
HDMI Wireless Transmitter Function Technical Specifications
Interface: HDMI IN x 1
Inputs audio and video signals through this interface.
Supported Devices: Windows computers and MAC computers
Software Installation: No, hardware implements audio and video data collection, encoding, and transmission without software.
Supported Wireless Receivers: Y900, E900P, A900 (RK3566 host)
Video Input Resolutions:
- 3840×2160
- 2560×1600
- 1920×1200
- 1920×1080
- 1366×768
- 1280×800
- 1280×720
- 1024×768
Encoding Resolution/Frame Rate: Up to 3840x2160P30
Encoding Format: H.265, H.264
Audio Input Format: 44.1KHz/48KHz/16-bit PCM, stereo
USB Camera Wireless Receiver Function Technical Specifications
Interface: Type-C USB x 1
Outputs USB camera signals through this interface.
Supported Devices: Windows computers and MAC computers
Software Installation: No, uses standard UVC & UAC interface
Supported Video Conferencing Software: Tencent Meeting, Zoom, Microsoft Teams, Google Meet, etc.
Supported Playback Software:
- Windows 10/11 built-in camera application
- MAC built-in QuickTime application
- Third-party software such as PotPlayer and OBS, etc.
Supported BYOM Hosts: Y900, E900P, A900 (RK3566 host)
UVC Stream Resolution: 1920×1080, 1280×720
UVC Stream Format and Frame Rate: MJPEG, 30 fps
UAC Audio: Mono/Stereo, 8~48KHz
F11SU Hardware Technical Specifications
Interface: Type-C USB x 1
For power supply, pairing, upgrades, and reverse touch control.
Antenna: 2T2R, built-in onboard antenna
Wireless Connection Method: Automatic operation upon power-on, automatic WiFi connection, one-click sharing
Built-in WiFi, does not occupy the computer’s WiFi
Wireless Transmission Protocol: IEEE 802.11ac/802.11n
Wireless Transmission Distance: Up to 30 meters line of sight (actual distance also depends on the receiver’s antenna)
Wireless Transmission Frequency Bands: 5G and 2.4G
Wireless Encryption Protocol: WPA2-PSK
Connection Time: < 13 seconds from power-on to screen mirroring
Transmission Delay: Average delay less than 150ms
Reverse Control Method:
Supports 10-point touch reverse control on Windows computers
Power/Consumption: 5V/1A, average power consumption 3.0W
Dimensions: 64mm x 63mm x 20mm (excluding cable length)
Temperature Range:
- Operation: +5°C ~ +40°C
- Storage: -20°C ~ +60°C
Humidity Range:
Operation & Storage: 0 ~ 90% relative humidity, non-condensing
