Description

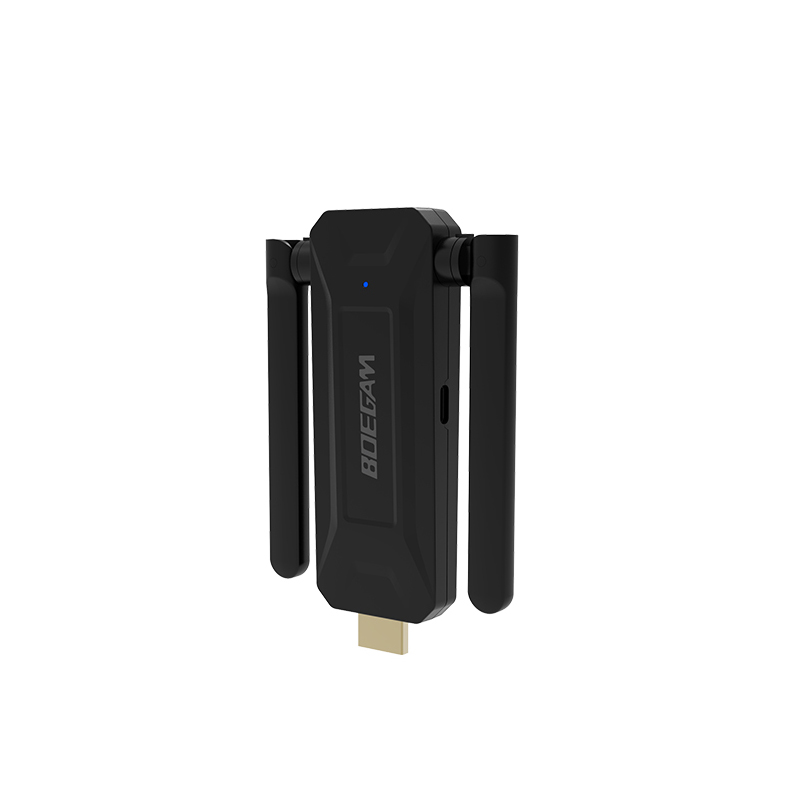

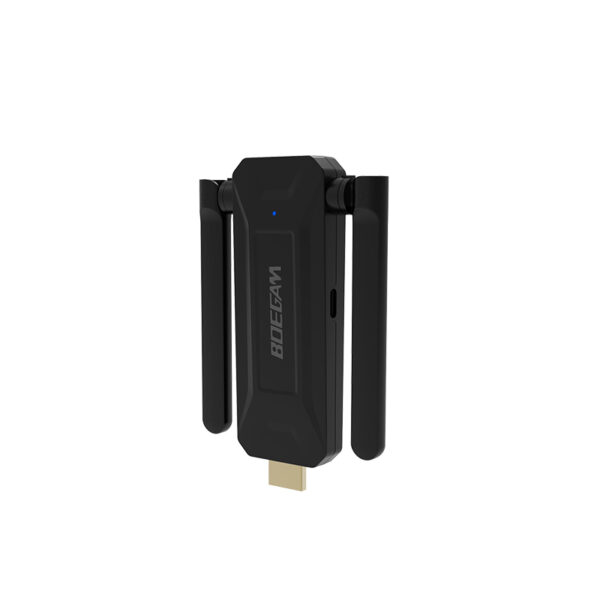

Long-Distance HDMI Wireless Transmitter
Interfaces:
HDMI x 1: For audio and video input
TYPEC x 1: For power supply, pairing, upgrades, and touch return
Antenna Interfaces x 2: For external 2dBi dual-band antennas
Supported Devices:
All devices with HDMI output, such as cameras, video matrices, multimedia
playback devices, and PCs
Software Installation:
Not required; no drivers or software installation needed
Hardware-based audio and video data acquisition, encoding, and transmission
Supported Wireless Receivers:
All Beogam receivers, including Linux boxes, Android boxes, and receivers with
Android RECV APK installed
Video Input Resolutions:
3840×2160, 2560×1600, 1920×1200, 1920×1080, 1366×768, 1280×800,
1280×720, 1024×768
Encoding Resolution/Frame Rate:
Up to 3840x2160P30Encoding Formats:
H.265, H.264
Audio:
44.1KHz/48KHz/16bit PCM, stereo
Wireless Connection Method:
Automatically establishes WiFi connection with the receiver upon powering on,
automatically mirrors to the receiver
Wireless Transmission Protocol:
IEEE 802.11ac/802.11n
Wireless Transmission Distance:
Up to 100 meters line of sight (actual distance may vary depending on the
receiver’s antenna)
Wireless Transmission Frequency Bands:
5G and 2.4G
Wireless Encryption Protocol:
WPA2-PSK
Connection Time:
Time from power-on to screen mirroring display: < 18 seconds
Transmission Delay:
Average delay less than 150ms
Reverse Control:
Supports 10-point touch reverse control (Windows systems supported)
Power/Consumption:
5V/1A, average power consumption 2.5W
Dimensions: 110mm x 70mm x 18mm
Temperature Range:
Operating: +5°C to +40°C
Storage: -20°C to +60°C
Humidity Range:
Operating & Storage: 0% to 90% relative humidity, non-condensing
