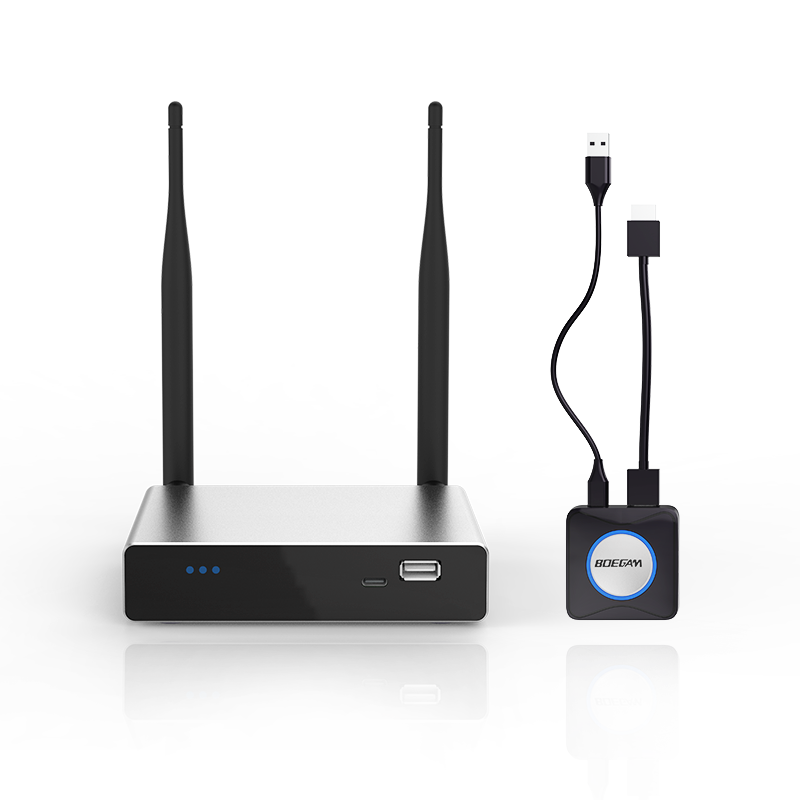

VA200

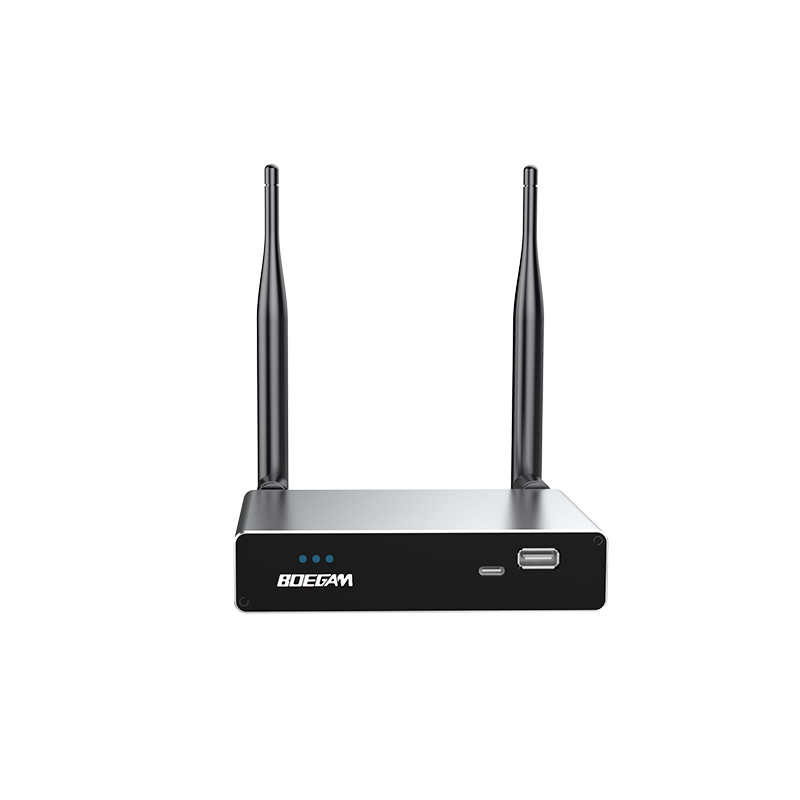

VA200 - Image 2

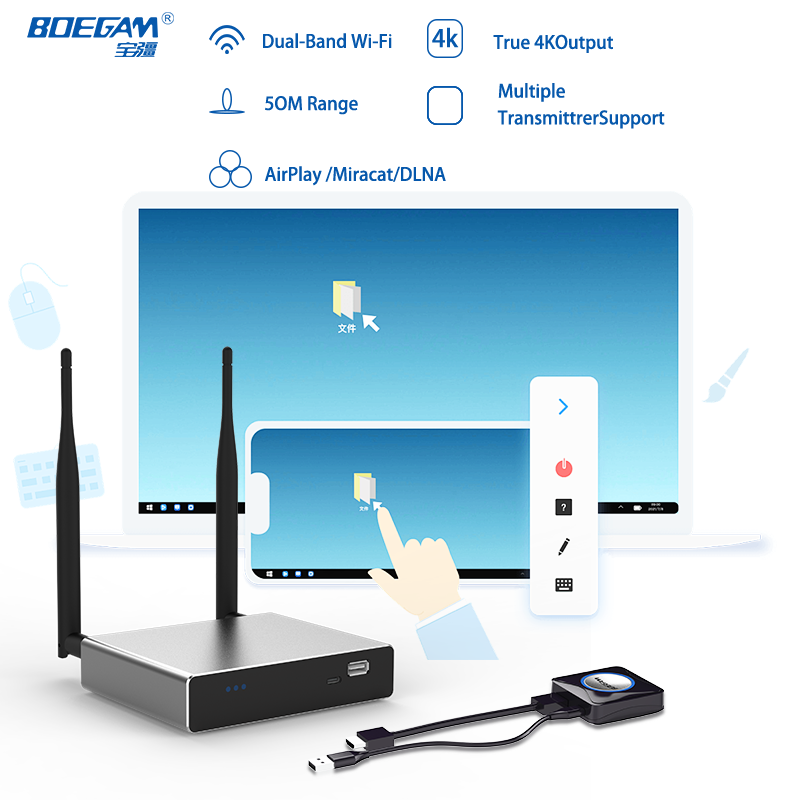

VA200 - Image 3

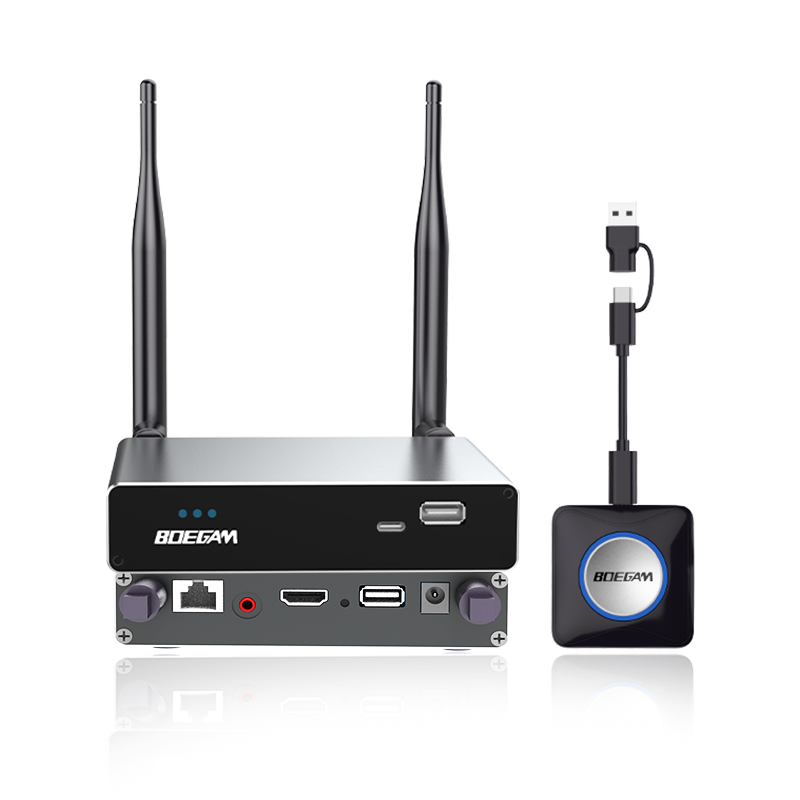

VA200 - Image 4

VA200

  • Pure wireless presentation experience, bring your own device, no cable messy
  • Support native wireless mirroring protocols like Airplay, Miracast,
  • Support plug&play HDMI/TYPE-C/USB-A dongles for wireless connection
  • Support windows APP for wireless connection
  • Support 2 split screens simultaneously and max 4K output
  • Support reverse control of laptop from touch screen
  • Central management platform available
Category:

Description

Embedded Hardware Architecture:
Equipped with a Rockchip multimedia chip, quad-core A7 1.4GHz CPU. Supports 1 channel of 4K or 2 channels of 1080P decoding, and 1 channel of 1080P encoding. The built-in Linux operating system is stable, allowing for long-term, continuous operation (24/7).

Supported Operating Systems:

  • Windows 7/10/11 (32-bit and 64-bit)
  • macOS X 10.10 or above
  • Smartphones/Tablets:
    • AirPlay screen casting (iOS 9 and above recommended, macOS X 10.10 and above)
    • Miracast screen casting
    • DLNA screen casting
    • Android app screen casting (Android 5.0 and above)

Hardware Specifications:

  • 1 x HDMI 2.0 port
  • 1 x Network port (100Mbps Ethernet)
  • 1 x 3.5mm audio jack
  • 2 x USB 2.0 ports
  • 1 x USB Type-C 2.0 port
  • 1 x 12V/1A power port

HDMI Maximum Output Resolution: 4K @ 60Hz

Decoding Format: H.265, H.264



Decoding Capability: Up to 4K @ 30fps

Frame Rate: Up to 30 frames per second

HDMI Resolutions Supported:

  • 3840x2160P60
  • 1920x1200P60
  • 1920x1080P60
  • 1280x720P60
  • 1024x768P60

Supported Transmitters:

  • USB Transmitter (1080P encoding)
  • HDMI Transmitter (1080P/4K encoding)
  • Type-C Transmitter (1080P/4K encoding)

Wireless Transmission: Supports Miracast and DLNA. No need to switch WiFi configuration on the host device.

Display Content:

  • Supports mixed display from both PC and mobile devices
  • Multiple mobile devices can display simultaneously

Switching Between Sources: Seamless switching between hardware transmitters (USB, HDMI, Type-C) and wireless screen casting methods like AirPlay, Miracast, etc., without delay.

Display Ratios:

  • 1:1
  • 4:3
  • 16:9
  • 16:10

Customizable Resolution and Display Ratio: Adjustable during screen casting. Devices on the same network can automatically detect and connect to multiple receivers.

Simultaneous Display Sources: Supports 2 sources displayed simultaneously, with up to 16 connected sources.

Single-Screen 4K Output:
For single-screen casting at 4K resolution:

  • Real 4K transmission (4K input, encoding, decoding, and output at 4K 60Hz). Requires 4K transmitters (F11S and F21S).

Dual-Screen 4K Output:
For dual-screen casting, each screen supports up to 1080P clarity.

Audio Output: 44.1KHz/16-bit stereo via embedded HDMI or 3.5mm analog audio out.

Dual-Band Dual WiFi:

  • AP (hotspot) supports both 2.4GHz and 5GHz
  • STA (WiFi card) supports both 2.4GHz and 5GHz

Wireless Bridging: Supported

Wired Bridging: Supported

Wireless Transmission Protocol: IEEE 802.11ac/802.11n

Wireless Transmission Distance: Up to 50 meters (line of sight)

Wireless Frequency Bands: Supports both 2.4GHz and 5GHz (default is 5GHz)

Selectable Channels: 9 (5GHz), 11 (2.4GHz) – Total 20 channels

Wireless Encryption Protocol: WPA2-PSK

Transmission Delay: Average delay less than 150ms

Customizable Features: Custom startup/standby screen, web management interface, changeable frequency bands and channels, video output resolution, WiFi name, and password.

USB Auto Playback: Supports automatic looping of 4K videos and images from a USB drive.

Multi-Screen Display:
Supports both wireless and wired multi-screen display, functioning as a receiver for multi-screen setups.

Mouse and Touch Control:

  • Supports remote mouse and touch control during screen casting from PCs and Android devices.
  • For PC, supported through USB, HDMI, Type-C transmitters, and WIN Sender app.
  • For Android, supported through Type-C transmitters or LiveSHOW app with USB transmitter.

Extended Desktop: Supports extended desktop mode during screen casting.

Casting Code Feature: Supported

Three Types of Screen Casting Connections: Supports AP, wired, and wireless network card modes, with seamless switching between these methods.

Vertical Screen Display: Supports vertical screen casting from Android devices.

Full-Screen Display: Automatic full-screen adjustment.

AirPlay Casting: Supports both mirroring and streaming modes, with up to 1080P resolution.

Power Consumption: Average power consumption ≤ 4W

Temperature Range:

  • Operating: +5°C to +40°C
  • Storage: -20°C to +60°C

Humidity Range:

  • Operating and Storage: 0% to 90% relative humidity, non-condensing
