Embedded Hardware Architecture:
Equipped with a Rockchip multimedia chip, dual-core A7 1.0GHz CPU, supporting 1 channel of 1080P decoding. The built-in Linux operating system ensures stable performance and continuous operation, supporting 24/7 use.
Supported Operating Systems:
Windows 7/10/11 (32-bit and 64-bit)
macOS X 10.10 or above
Smartphones/Tablets:
AirPlay (recommended for iOS 9 and above, macOS X 10.10 and above)
Miracast
DLNA screen casting
Android app screen casting (Android 5.0 and above)

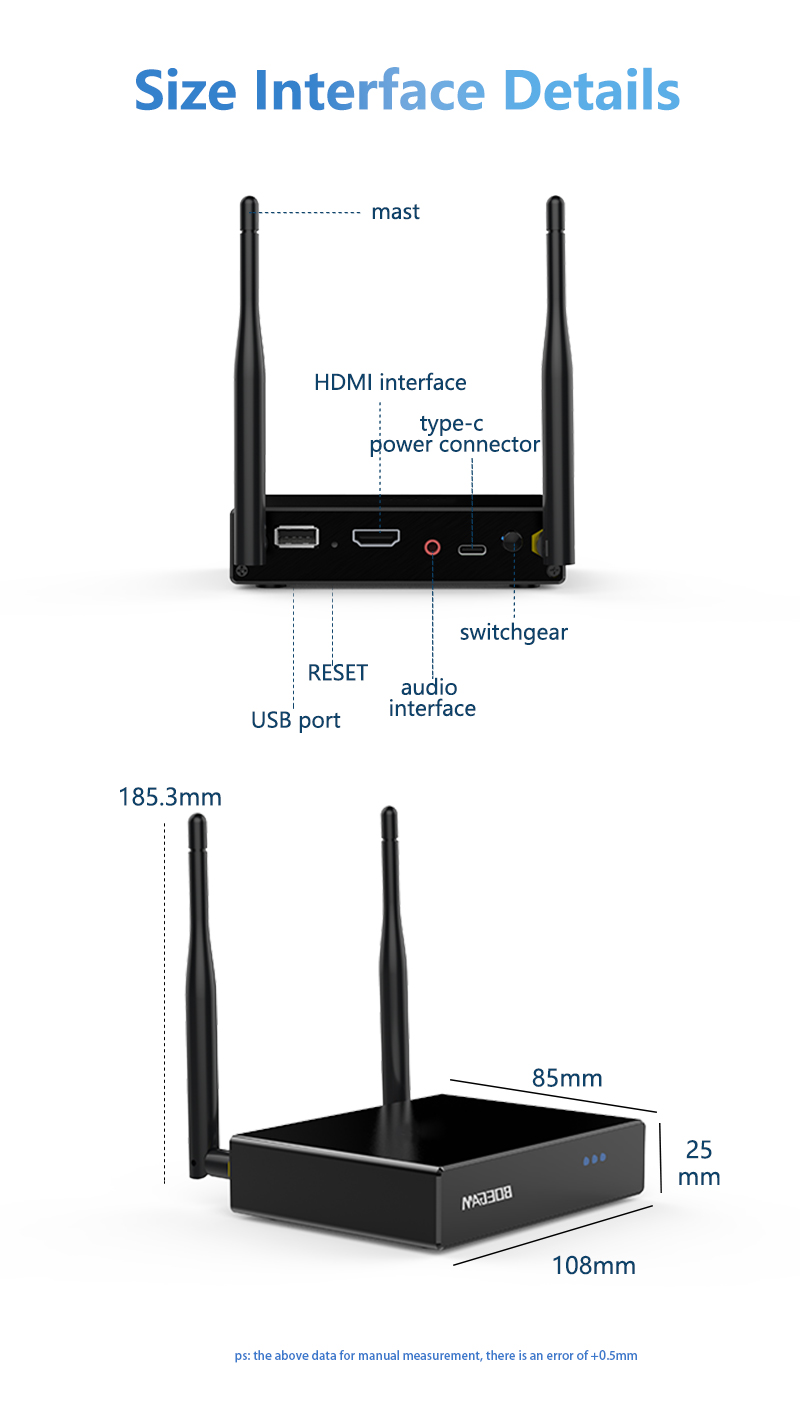

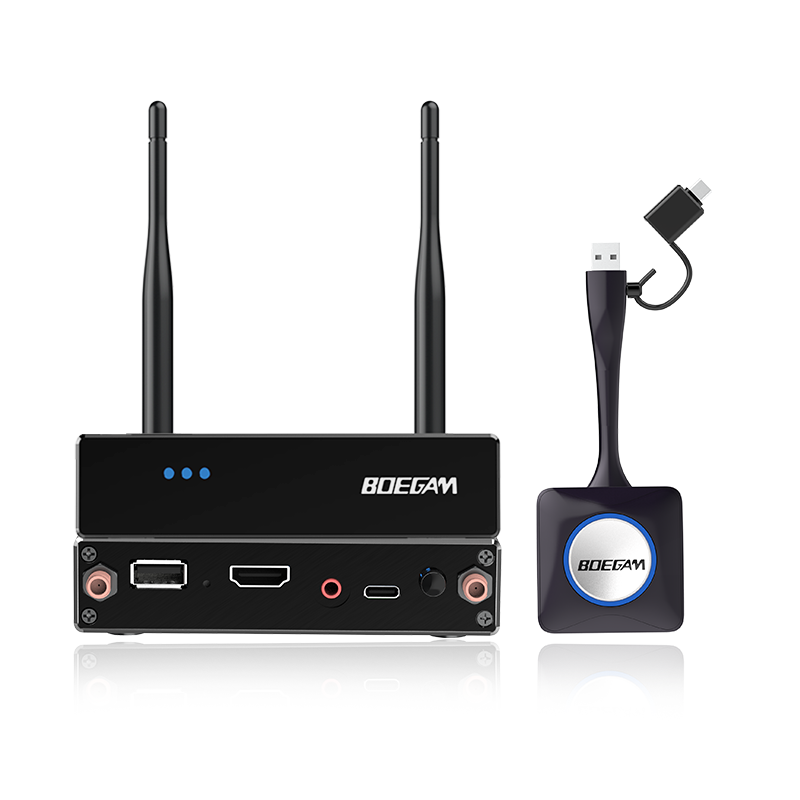

Hardware Specifications:
1 x HDMI 1.4 port
1 x 3.5mm audio jack
1 x USB 2.0 port
1 x 5V/1A power port
1 x Power switch
HDMI Output Resolution: 1920×1080 @ 60Hz
Decoding Format: H.264
Decoding Capability: 1920x1080P30
Frame Rate: Up to 30 frames per second
HDMI Resolutions Supported:
1920x1080P60
1280x720P60
1024x768P60

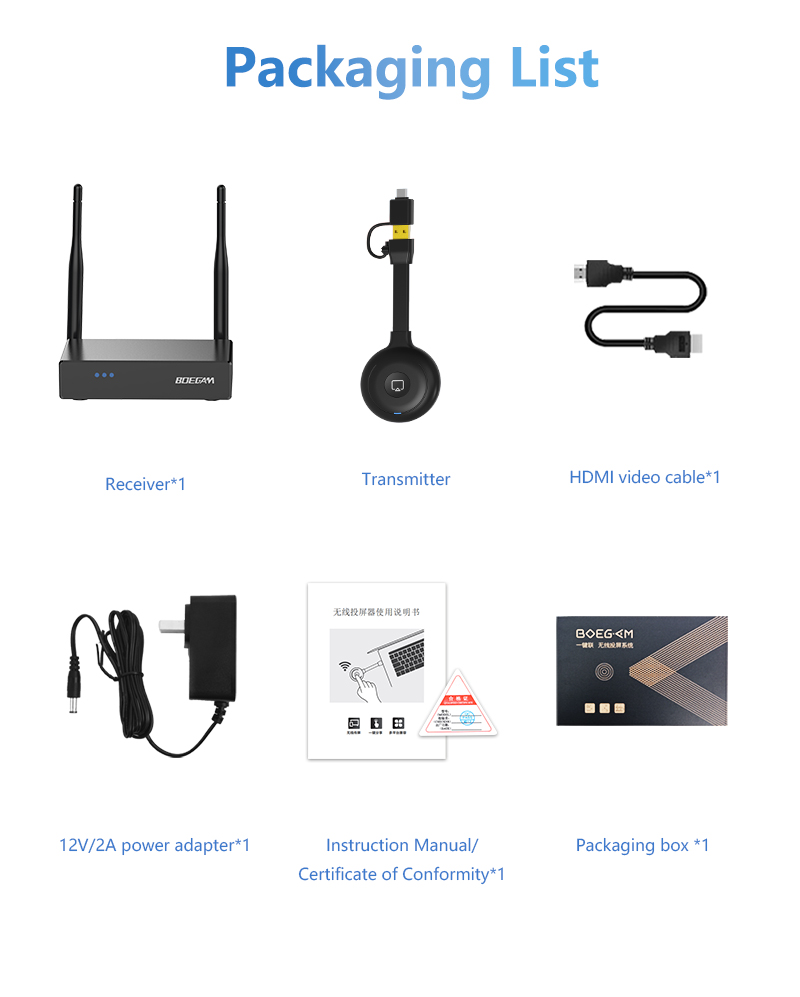

Supported Transmitters:
USB Transmitter (standard, highly compatible)
HDMI Transmitter (optional, smoother without software)
Type-C Transmitter (optional, smoother without software)
Wireless Transmission: Supports Miracast and DLNA screen casting without switching WiFi configurations.
Display Ratios:
1:1
4:3
16:9
16:10
Customizable Resolution and Display Ratio: Adjustable during the screen casting process. Devices on the same network can automatically detect and connect to multiple receivers.
Simultaneous Display Source: 1 source displayed simultaneously, with support for up to 16 connected sources.
Audio Output: 44.1KHz/16-bit stereo via embedded HDMI or 3.5mm analog audio out.
Wireless Transmission Distance: Up to 50 meters (line of sight)
Wireless Frequency Bands: Supports both 2.4GHz and 5GHz (default is 5GHz)
Selectable Channels: 9 (5GHz), 11 (2.4GHz), total of 20 channels
Wireless Encryption Protocol: WPA2-PSK
Transmission Delay: Average delay less than 150ms
Customizable Features: Custom startup/standby screen, web management interface, adjustable frequency bands and channels, video output resolution, WiFi name, and password.
USB Auto Playback: Supports automatic looping of 1080P videos and images from a USB drive.
Multi-Screen Display: Supports wireless multi-screen display as a receiver for multi-screen setups.
Mouse and Touch Control:
Supports remote mouse and touch control during screen casting from PCs and Android devices.
For PC, supported through USB, HDMI, Type-C transmitters, and WIN Sender app.
For Android, supported through Type-C transmitters or LiveSHOW app with USB transmitter.
Extended Desktop: Supports extended desktop mode during screen casting.
Casting Code Feature: Supported
Vertical Screen Display: Supports vertical screen casting from Android devices, with touch control.
