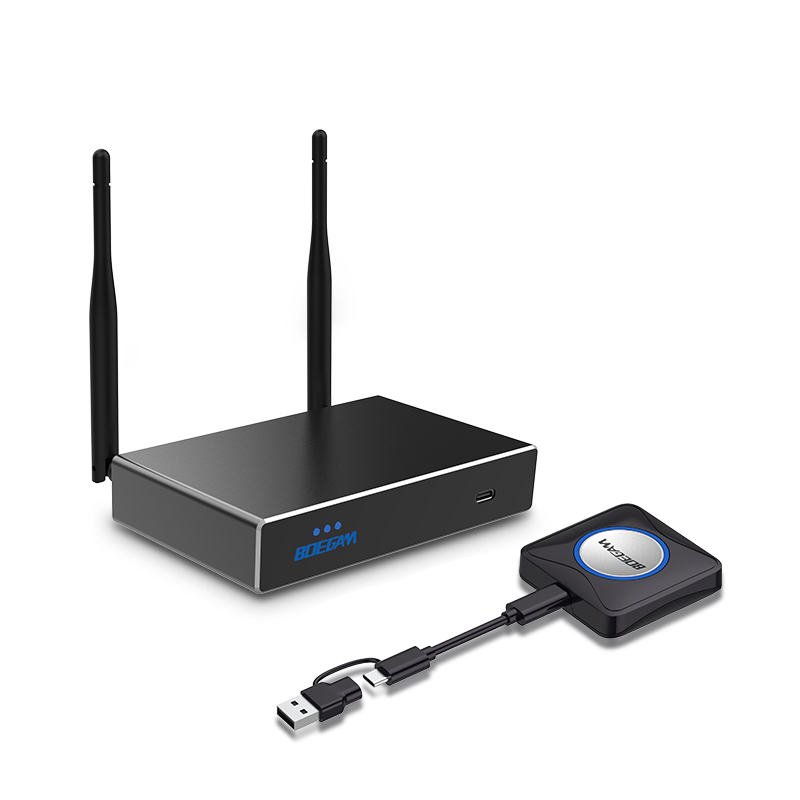

XS4

  • Pure wireless presentation experience, bring your own device, no cable messy
  • Support native wireless mirroring protocols like Airplay, Miracast,
  • Support plug&play HDMI/TYPE-C/USB-A dongles for wireless connection
  • Support windows APP for wireless connection
  • Support 2 split screens simultaneously and max 4K output
  • Support reverse control of laptop from touch screen
  • Central management platform available
Category:

Description

Embedded Hardware Architecture:

Rockchip Multimedia Chip, A7 1.4GHz Quad-core CPU, supports 1 channel of 4K or 2 channels of 1080P decoding, and 1 channel of 1080P encoding. It has a built-in Linux operating system, offers stable performance, and can operate continuously without shutdown, supporting 24/7 operation.

Supported Operating Systems:

  • Windows 7/10/11 (both 32-bit and 64-bit)
  • MAC OS X 10.10 and above

Wireless Screen Mirroring Support for Smartphones/Tablets:

  • Airplay: Recommended for iOS 9 and above, OS X 10.10 and above
  • Miracast
  • DLNA
  • Android app mirroring (Android 5.0 and above)

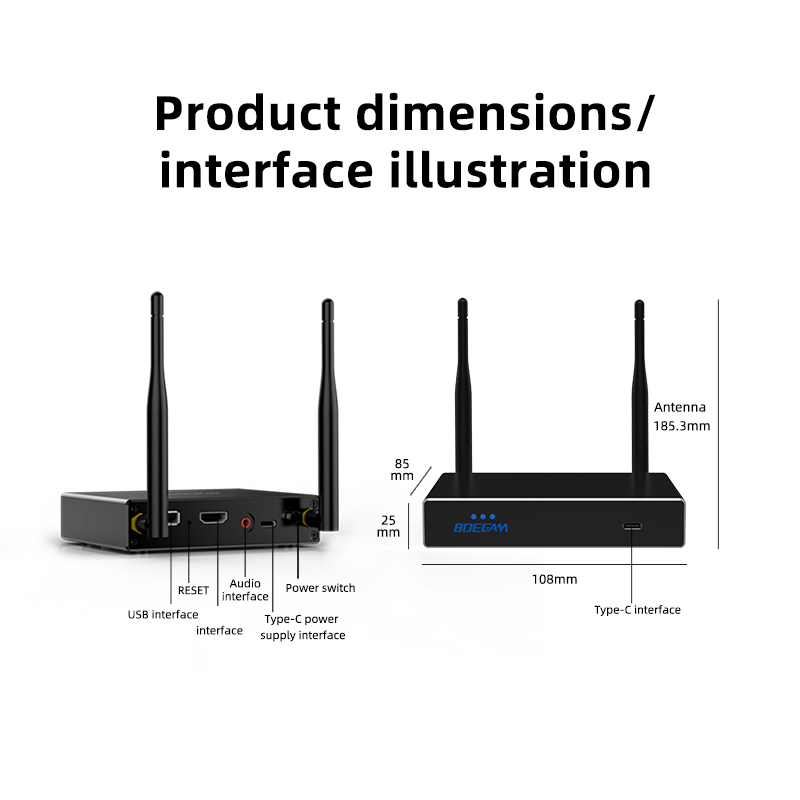

Hardware Specifications:

  • 1 x HDMI 2.0 interface
  • 1 x 3.5mm audio interface
  • 1 x USB 2.0 interface
  • 1 x TYPEC USB 2.0 interface
  • 1 x 5V/1A power interface
  • 1 x power switch

Maximum HDMI Output Resolution:

  • 4K60Hz

Decoding Formats:

  • 265, H.264

Decoding Capability:

  • Maximum 4K30

Frame Rate:

  • Up to 30 frames per second

HDMI Resolutions:

  • 3840x2160P60, 1920x1200P60, 1920x1080P60, 1280x720P60, 1024x768P60

Supported Transmitters:

  • USB transmitter (1080P encoding)
  • HDMI transmitter (1080P/4K encoding)
  • TYPEC transmitter (1080P/4K encoding)

Additional Features:

  • Support for WIN pure software screen mirroring via WIN Sender application
  • Miracast screen mirroring without needing to switch host WiFi configuration
  • DLNA screen mirroring
  • Mixed display support for computer and mobile devices, simultaneous multi-channel mobile device display
  • Seamless switching between various transmitters (hardware transmitters, AirPlay, Miracast, etc.) without waiting
  • Display aspect ratios: 1:1, 4:3, 16:9, 16:10
  • Adjustable resolution and display aspect ratio during mirroring, automatic device search, and mirroring within the same network segment
  • Simultaneous source display: 2 channels
  • Simultaneous source connection: Supports up to 16 channels
  • Single-screen 4K output: True 4K mirroring (4K input, 4K encoding, 4K decoding, 4K60Hz output) with 4K transmitters F11S and F21S
  • Dual-screen 4K output: Each screen up to 1080P resolution
  • Audio output: 44.1KHz/16bit stereo, embedded audio output via HDMI and 3.5mm analog line audio output
  • Dual-band dual WiFi: Hotspot AP supports 5G/2.4G dual-band module; Network card STA also supports 5G/2.4G dual-band module
  • Wireless bridging support
  • Wireless transmission protocol: IEEE 802.11ac/802.11n
  • Wireless transmission distance: 50 meters line of sight
  • Wireless transmission frequency: Supports 2.4 GHz or 5 GHz, default 5G
  • Selectable channel number: 9 (5G)/11 (2.4G), total 20 channels
  • Wireless encryption protocol: WPA2-PSK
  • Transmission delay: Average delay less than 150ms
  • Customizable boot/standby screen, WEB management interface, frequency band and channel modification, video output resolution modification, WiFi name and password modification
  • Support for automatic looping playback of videos and images from a USB drive, supporting 4K videos and images
  • Wireless multi-screen display support, acting as a multi-screen display receiver (secondary host)
  • Support for PC screen mirroring with mouse and touch reverse control (via USB transmitter, HDMI transmitter, TYPEC transmitter, and WIN Sender)
  • Support for Android phone screen mirroring with mouse and touch reverse control (via TYPEC transmitter or LiveSHOW APP+USB transmitter)
  • Extended desktop mirroring support
  • Screen mirroring code feature support
  • Portrait display mode support, Android phone portrait screen mirroring with reverse control (via LiveSHOW APP+USB transmitter)
  • Auto full-screen display setting support
  • AirPlay mirroring supports both mirroring and streaming modes, with resolution up to 1080P

Power/Consumption:

  • Average power consumption not exceeding 4W

Temperature Range:

  • Operating: +5°C to +40°C
  • Storage: -20°C to +60°C

Humidity Range:

  • Operating & Storage: 0% to 90% relative humidity, non-condensing
